Product Code
|
A – 300XX / SM |
Operation Voltage
|
9 – 30 VDC
|
LED
|
3 WATT POWER LED
|
LED Duration
|
100.000 hours
|
Mode option
|
7
|
Flash interval
|
2 – 4 Hz
|
Sizes (MM)
|
357 X 260 X 120 |
Assembly
|
Stable stretched bracket
|
Cable
|
3.5 Meter blue (Mode), red (VDC), black(GND)
|
Standards |
ECE R65, ECE R10, SAE J
|
Quality System
|
CE, ISO9001-2015
|

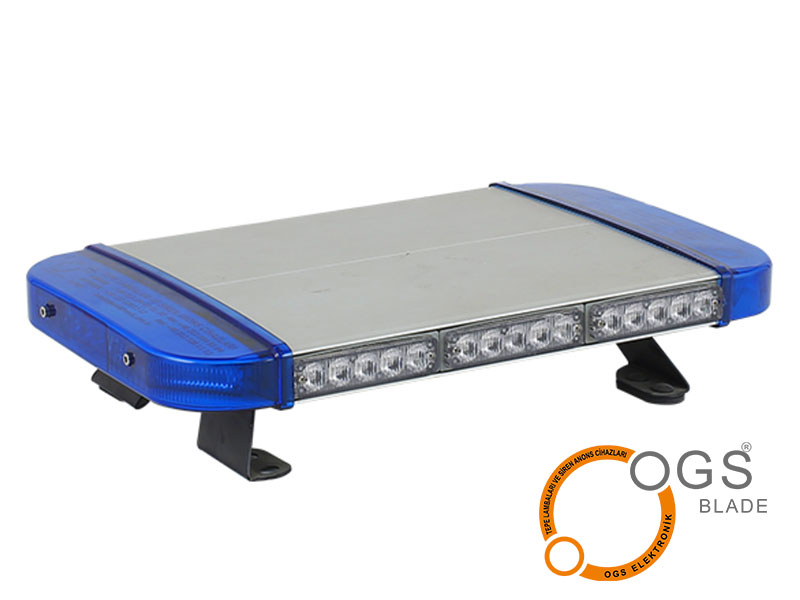

As OGS Electronics, we use 3 Watt High Power LEDs in terms of lighting technology in the light bar. OGS uses an electronic control board with a low power structure in ceiling lamps.
OGS Electronic light bar emit maximum light along with ultra-low power consumption.
OGS Electronic overhead lamps The light bar installation is carried out with connection devices and mounting parts consisting entirely of stainless materials.
Lead-free solder and electronic component are used in OGS Electronic light bar in accordance with European standards.
OGS Electronic light bar are vibration, dust, moisture, high temperature resistant in structure.
OGS Electronic light bar is manufactured in accordance with EMC/EMI standards in terms of light electronics.
Rain tests are regularly performed on the light bar according to SAE standards and the test results are documented.
The warranty period of OGS Electronic products is 2 years.
